LP-102 Ladder

Compact and Mighty

The LP-102 is the perfect solution when you are faced with a smaller fire station that not only has small door openings but is also limited in the length of vehicle that can be kept. The LP-102 can be built as low as 10' 10" with a pre-piped waterway and 10' 4" without waterway. If needed, the truck can be designed with an overall length under 40'.

Performance Stats

  • Chassis: Inferno
  • Body: Extruded aluminum—quint or truck (no pump/tank)
  • Quint 1 compartment: Left side full height x 24" deep, right side full height with EZ-Stack hose bed
  • Quint 2 compartment: Left and right side full height x 24" deep lower/12" deep upper with hose chutes
  • Truck: Left and right side full height, 24" deep lower/transverse upper ahead of aerial
  • Ladder storage: Up to 200' ground ladders enclosed in full-length torque box
  • Pump: Up to 3,000 GPM
  • Tank size: Up to 500 gallons
  • Ladder and Reach: 4-section heavy-duty rear-mount aerial with - 8° to +72° operational envelope, over 180° rotation at - 8°, 102' vertical reach at 72° and 97' horizontal reach at 0°, able to overcome setbacks with impressive 57' vertical and 84' horizontal reach at 30°
  • Rated load capacity: 500 pounds flowing 1,250 GPM, up to 1,750 pounds distributed plus 500 pounds at the tip while flowing 1,250 GPM, no restrictions on aerial or monitor movement or placement while flowing 1,250 GPM
  • Warranty: 10-year cab and body structural, 25-year aerial structural, 10-year waterway and waterway seals, 15-year torque box and stabilizer, 2-year mechanical, chassis, cab, body and aerial
  • Compact 11' 6" standard travel height
  • Low travel height available, 10' 10" with waterway or 10' 4" without pre-piped waterway
  • 500-pound tip load flowing 1,250 GPM
  • Standard equipment includes rung illumination and electric actuated positional waterway

Features & Benefits

Well-lit Ladder Rungs

Well-lit Ladder Rungs

Provide safe and easy night operations.
Maximum Compartment Space

Maximum Compartment Space

Over 205 cubic feet of usable storage space plus over 150' of ground ladders in the rear torque box opening. The right side EZ-Stack hose bed can carry 1000' x 5" and 400' x 2-1/2".
Optional Recessed Magnet

Optional Recessed Magnet

Save set-up time and stop guessing where the auxiliary ground pads should be placed. We offer an optional recessed magnet in the auxiliary pad, allowing you to connect to the stabilizer foot pad prior to deployment.

Standard Bolt-on Egress Section

Standard Bolt-on Egress Section

Standard on all Ferrara aerial ladders is an 11° angled, bolt-on egress section. The downward angle allows for easy transition to a window or roof. And because it’s bolt-on, it can be easily replaced if ever damaged.
Dual Siamese Extension Cylinders

Dual Siamese Extension Cylinders

Extension/retraction is smooth and rapid with our dual Siamese extension cylinders. Why settle for 2 extension cylinders when you can have 4?

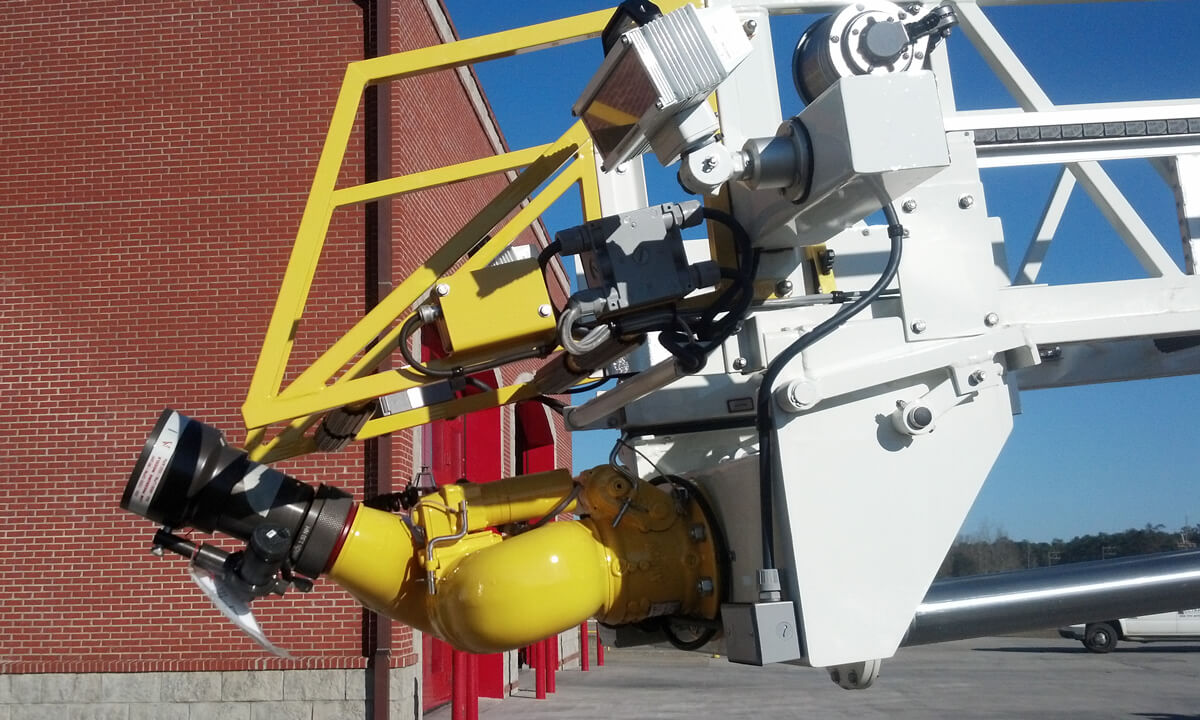

Optional 165 Vertical Travel Monitor

Optional 165 Vertical Travel Monitor

Quickly put out a fire in an attic or upper void area with our optional 165 vertical travel monitor. This allows you to flow a master stream at the ladder’s rated capacity up to 30° above horizontally.
Angled Stabilizer Foot Pads

Angled Stabilizer Foot Pads

Stabilizer foot pads are angled slightly down toward the middle of the truck. During the winter, when you park the truck in your station, snow, ice and slush will melt and drain off the foot pad instead of melting there and causing the pad to rust.
Optional 2-1/2

Optional 2-1/2" Discharge

Supply a standpipe without disconnecting the nozzle on the aerial monitor with our optional 2-1/2" discharge at the ladder tip.

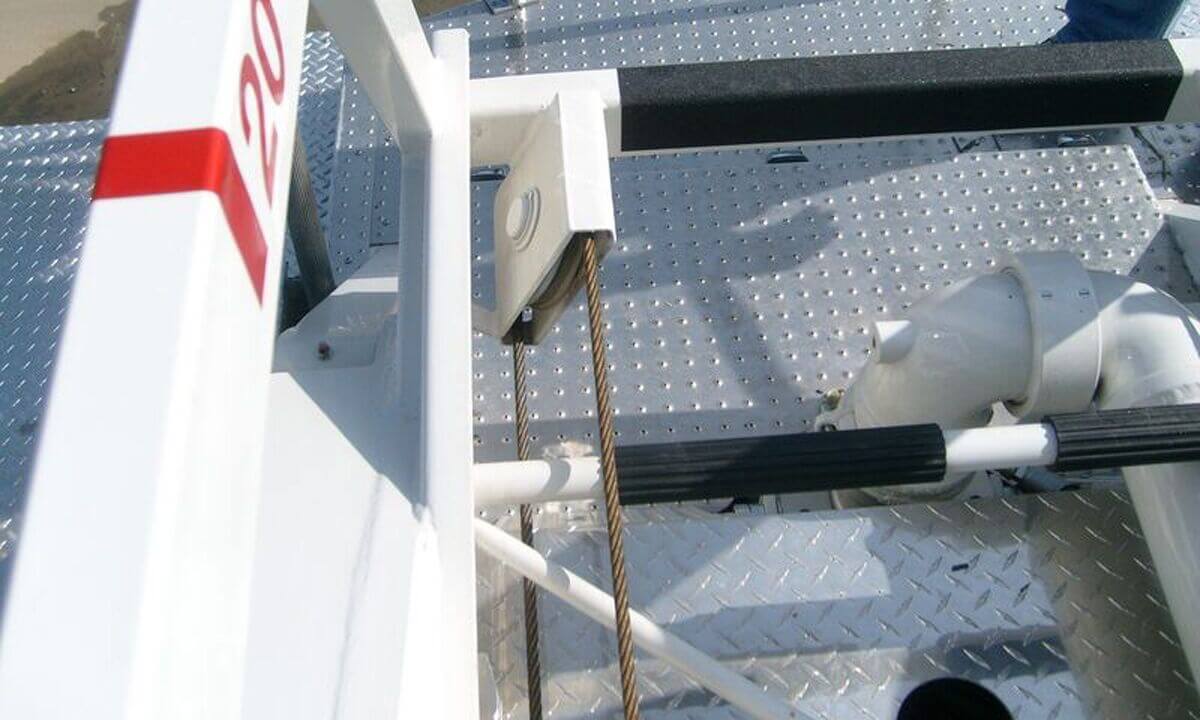

Fully Enclosed Sheaves

Fully Enclosed Sheaves

All sheaves are fully enclosed, so you don’t have to worry about getting PPE or other gear caught between the cable and pulley.
Optional 500lb-capacity Rope Rescue Pulley

Optional 500 lb-capacity Rope Rescue Pulley

Use our optional 500-pound-capacity Rope Rescue Pulley system to safely and easily perform high-angle rescue operations.

Load-lifting Eyes at Ladder Tip

Load-lifting Eyes at Ladder Tip

Load-lifting eyes come standard on all Ferrara aerials. They are rated at 500 pounds as a pair giving you added rescue capability.

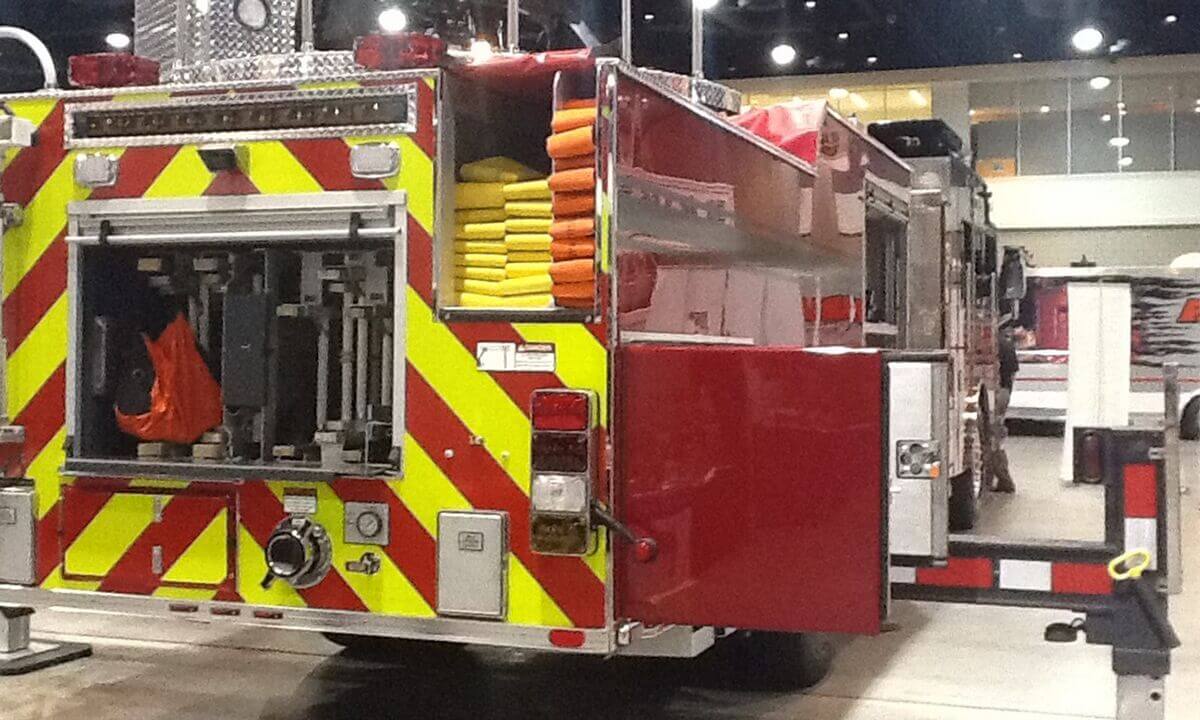

EZ-Stack Hose Bed

EZ-Stack Hose Bed

Ferrara’s HD-77 with right side EZ-Stack hose bed can easily carry 1,000' x 5" and 400' x 2-1/2" and you still have a full-height compartment ahead of the right wheel.

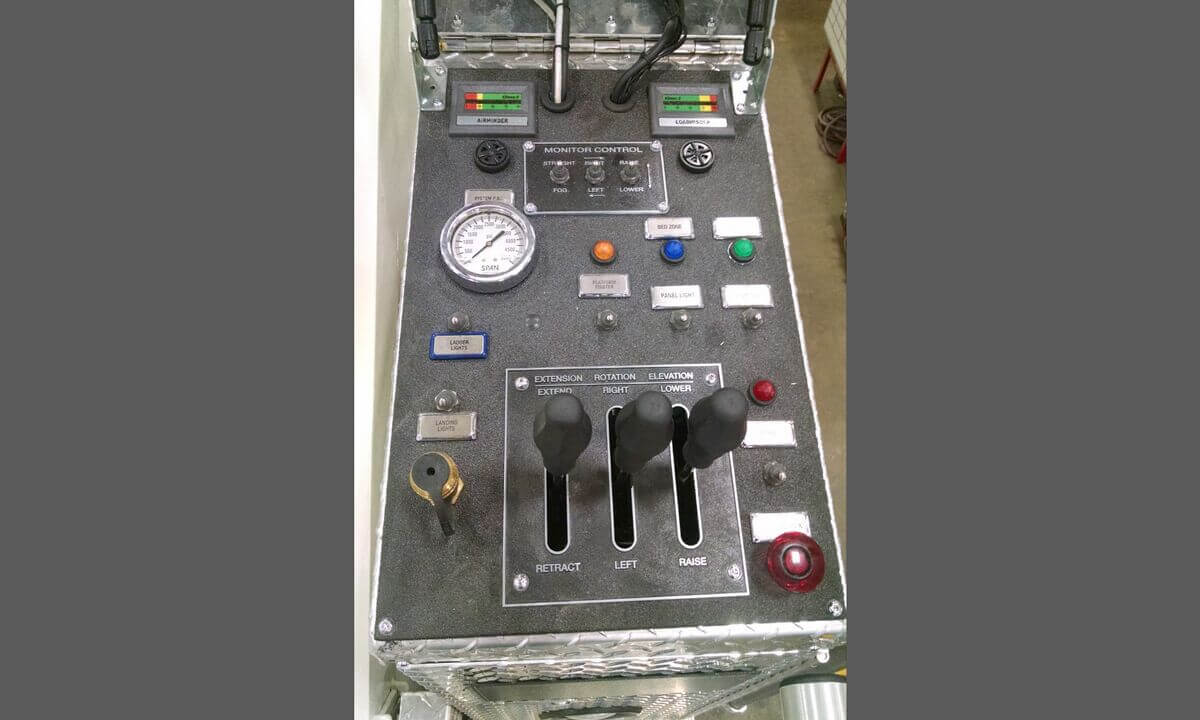

Clean, Easy-to-use Controls

Clean, Easy-to-use Controls

The turntable control console has a clean design with easy-to-find and read instruments. The ladder controls are direct hydraulic, requiring no manual overrides.
